Auto Darkening Technology









Auto-darkening Welding Helmet



Industry
Professional


Scope
User Interface Design
Industrial Design
Design Engineering






Formation worked closely with Jackson Safety to develop a new ADF (Auto Darkening Filter) user interface and an aggressive mask identity.











ADF User Interaction

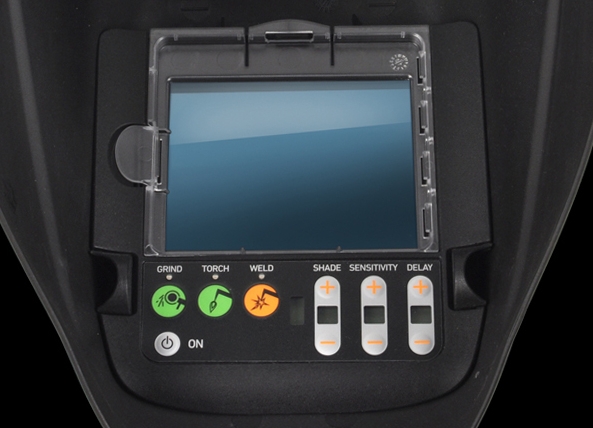

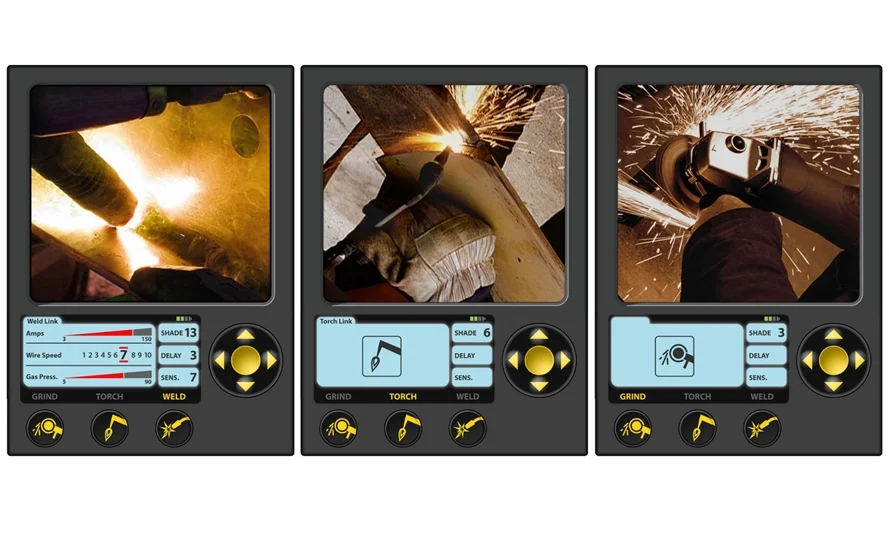

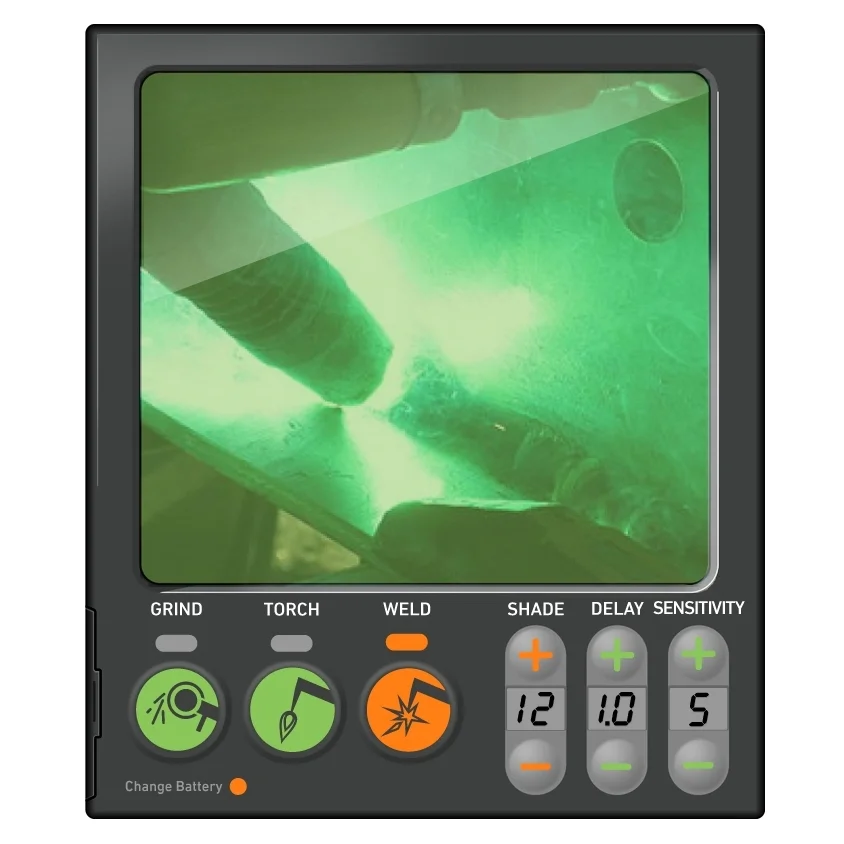

This new ADF (Auto Darkening Filter) gives the welder options for sensitivity and delay levels for various welding applications. Large LED indicator buttons let the user directly choose from weld, grind and torch modes with gloves on. A variety of input and graphical display concepts were tested with professional welders with the most direct input concept (left) being selected for development.

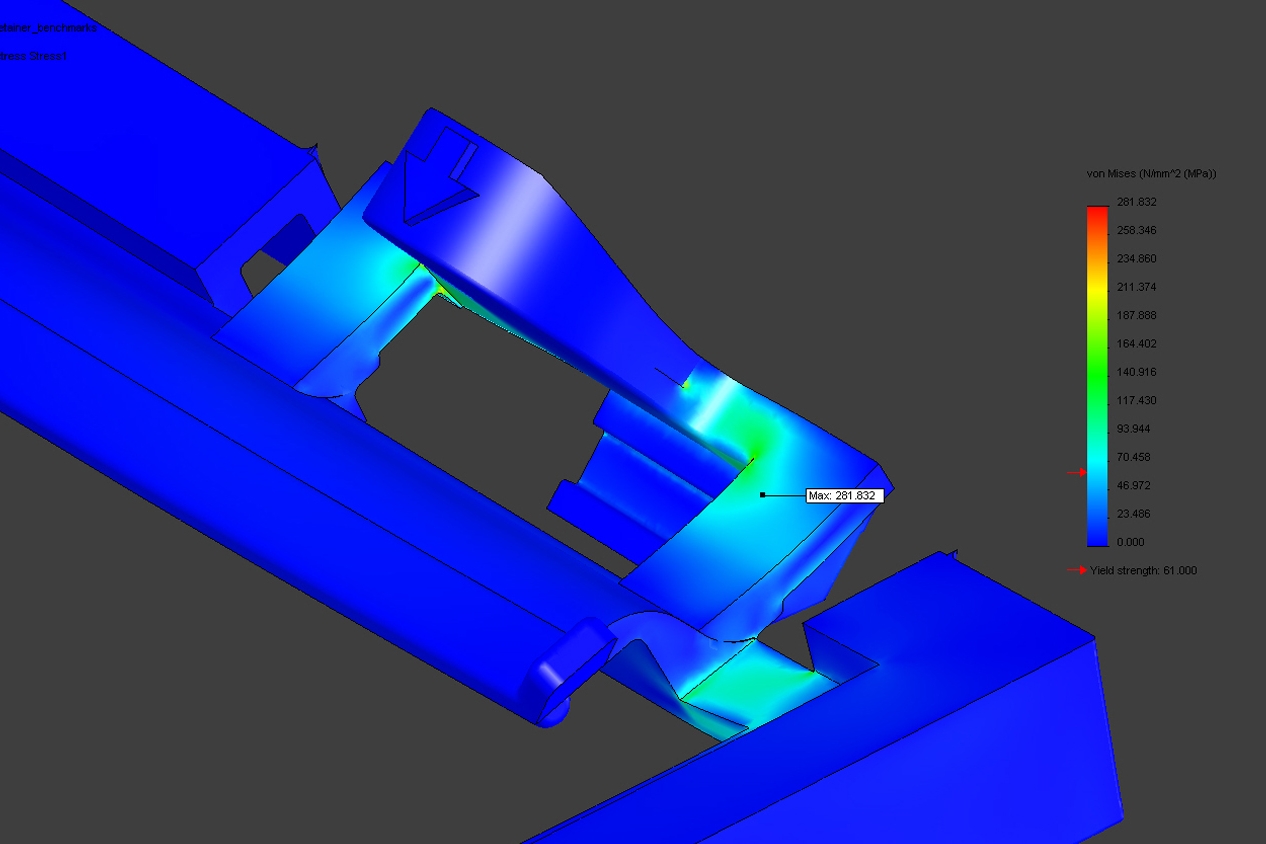

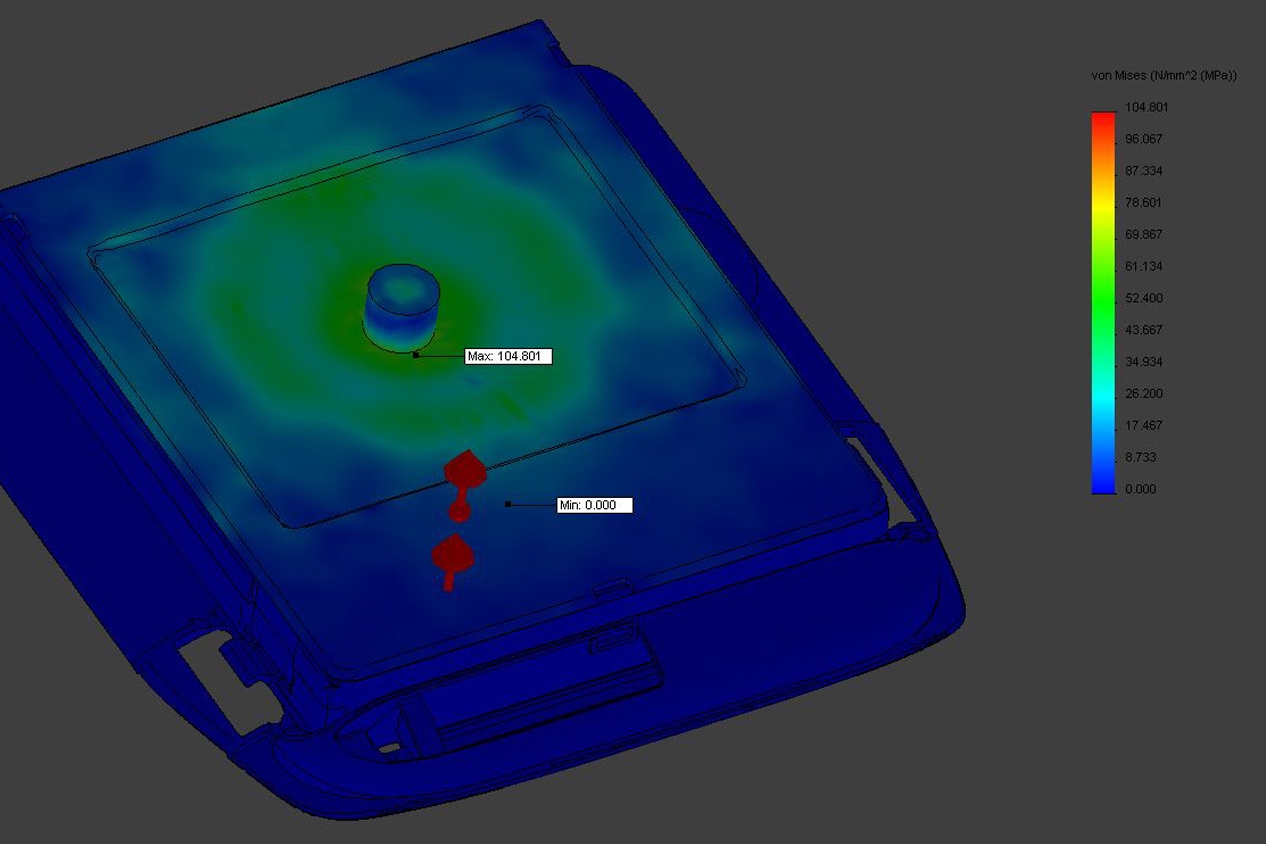

Mechanical Engineering Robust Latching Mechanics for Easy Filter Removal and Impact Test Analysis

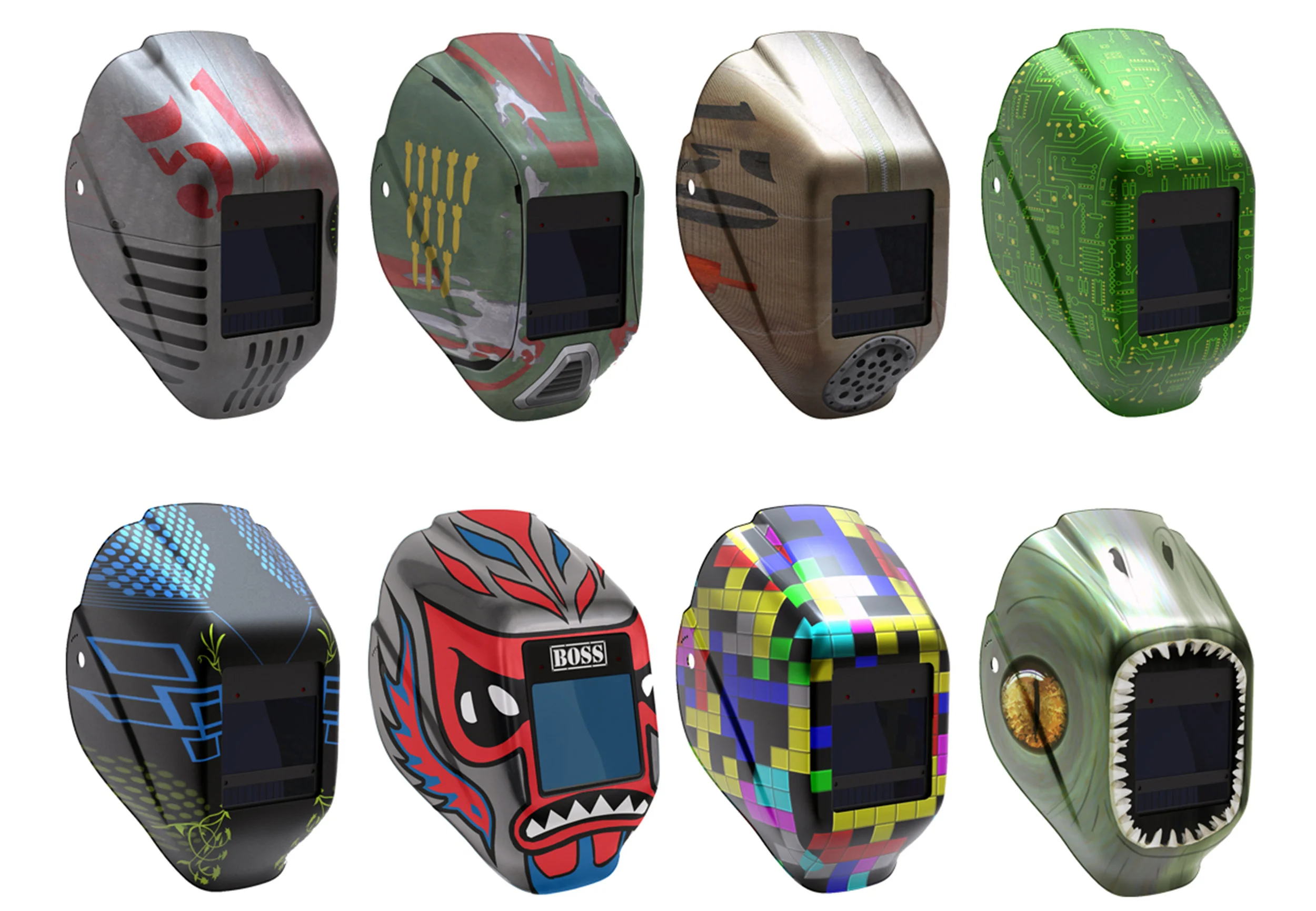

Visually Aggressive Helmet Graphic Options

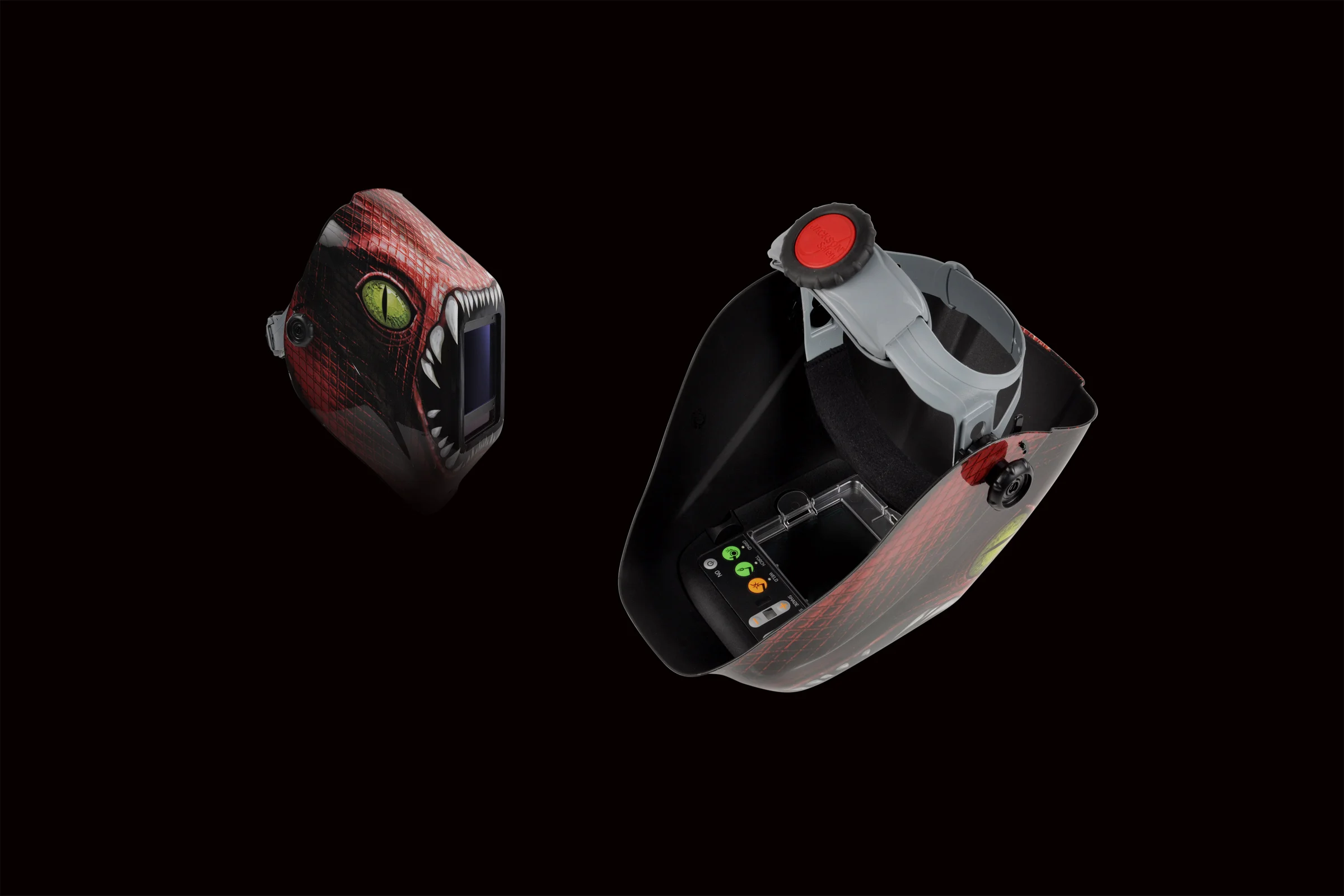

Jackson auto-darkening helmets feature self-tinting lenses to protect your vision and built-in magnification lens helps you see details better when welding.
